Basic Features
· 3-3 / 4 digits 4,000 count
· 0.3% best accuracy
· AC True RMS ※RD701 only
· Capacitance measurement
※Not suitable for measurement of condensers with large leak current.
· K type temperature
※Optional accessory K-AD is necessary.
※K type temp. sensor K-250PC is included as a standard accessory
· Frequency measurement
※Input voltage : 20VACrms and under
※Input signal : sign wave or square wave with 40%-70% duty
※Input sensitivity : 10Hz〜20kHz/0.9Vrms and above
: 20kHz〜500kHz/2.6Vp or 1.9Vrms and above
: 500kHz〜1MHz/4.2Vp or 3Vrms and above
· ADP function (for current sensor)
· Max recording measurement
· Data hold / Range hold · Relative value
· Auto power off (30min.) (cancelable)
· Alarm for improper test lead insertion to current terminal
· rotective holster with wall hanger and lead holder
· Tilt stand
Display : numeral display 4,000 (Hz : 9,999, capacitance : 5,000)
Sampling rate : 3 times / sec. (Hz : 2 times / sec.)
AC frequency bandwidth : 50〜500Hz
Safety
IEC61010-1 (EN61010-1) 2001-02 CAT.III 600V Max. / CAT.II1000V Max.

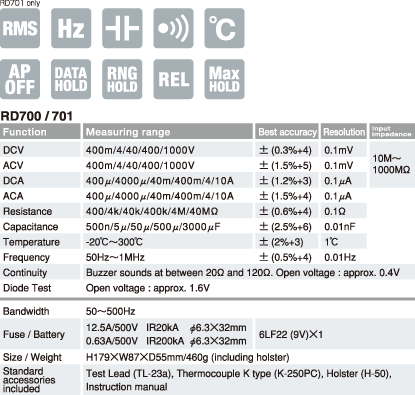

Specifications
