Basic Features

· High input impedance (DCV2.5〜12MΩ/V), and 0.12μA range (DCA)
· Bandwidth 40Hz〜1MHz AC sign wave
· Rectangular pulse P-P (Peak to Peak) measurement (duty cycle 20% and above)
· Wide ohm range 0.2Ω〜200MΩ
  Bandwidth : 40Hz〜1Mhz (12V range and below)

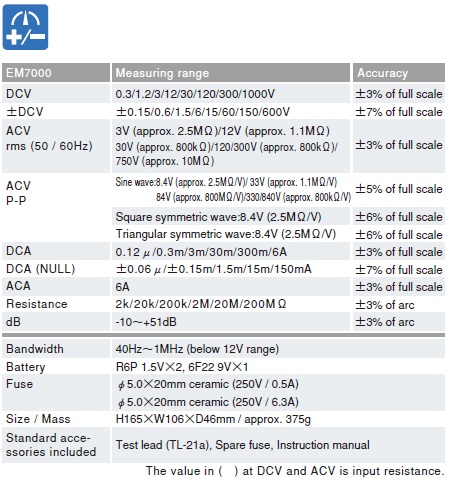

Specifications
